MD1 Core drill
70 mm column: 970 mm (38")
TS-Track: 1210 mm (48")
4
1450 Nm
Yes
15 kW
A heavy duty and extremely powerful core drill
Can be built on either the Pentruder 70mm column rig or the TS-track (MCCS-system)
For core bits upto 1210 mm
Product information
The Pentruder Modular Drill System MD1 is a versatile and powerful drilling system. The 4-speed MG41 gearbox gives the system a very smooth and efficient run and with two exchangeable spindle units it offers a wide speed range for different sizes of drill bits.
Quick disconnect couplings reduce the set up time. Small and big drill bits can be drilled in a shorter time than anyone thought possible.
Pentruder MD1 drill system can be driven by a 15, 18 or 22 kW HF-motor. Together with the MG41 gearbox and a ST2 or ST3 spindle unit and a Pentpak HF-power packs up to 1200 mm big holes can be drilled easily and efficiently.
Pentruder MD1 HF-drilling machine can either be built on the wall saw track (MCCS) or on the 70 mm column system.
Modular system
Combine different modules to suit your need. The basic equipment is a base plate, column, roller carriage, spindle unit, gearbox and HF-motor. The HF-drill system can be driven by the 15, 18 or 22 kW HF-motor.
Superstrong 4-speed gearbox
The MG41 4-speed gearbox is built to last. Together with a spindle unit it will offer a high torque and unbeatable unbeatable performance.
ERMD1 Extension adapter
When drilling big diameter holes over Ø 600 mm (23.6”)an extension adapter must be used to extend the distance between drill column and spindle, giving more clearance for bigger diameter drills. Each adapter extends the drill unit 90 mm (3.5”) further away from the column, i.e. gives additional clearance for a 180 mm (7”) bigger drill bit.
Very good stability
The carriage is very stable and gives perfect control over the drill bit.
High power and reliability
The Pentruder wall saws are powered by very powerful HF-motors. They all have very efficient cooling, high torque and are built by the best materials for reliability and a long lifetime. Reliable 400 Hz technology ensures a very reliable motor, long life of the bearings and no need for frequent maintenance.
Robust connectors
The connector housings are made in-house from high strength aluminium. At service the connector inserts can be replaced with hand tools.
| Max drill bit Ø: | 70 mm column: 970 mm (38") TS-Track: 1210 mm (48") |
| Number of mechanical gears: | 4 |
| Max torque: | 1450 Nm |
| Slip clutch: | Yes |
| Recommended HF-motor: | 15 kW |
| Max drill bit Ø: | 70 mm column: 970 mm (38") TS-Track: 1210 mm (48") |
| Extension adapter weight: | 3.3 kg (7.2 lbs) |
| Gearbox weight: | 8.2 kg (18 lbs) |
| Spindle unit weight: | 7.5 kg (16.5 lbs) |
| Detachable HF-motor: | Yes |
| Compatible HF-motors: | 22, 18, 15 kW 30, 24, 20 hp |
| Powerpack: | Pentpak 427i Pentpak 222 |
| Voltage: | 380-480V 50/60Hz 200-230V 50/60Hz |
Maximum drill bits for MD1 with CEI-70 carriage for 70 mm column and:
– without ERMD1 Extension adapter: 600 mm
– with one ERMD1 Extension adapter: 790 mm
– with two ERMD1 Extension adapters: 970 mm
– with three ERMD1 Extension adapters: not recommended
Maximum drill bits for MD1 with CER carriage for TS-track and:
– without ERMD1 Extension adapter: 660 mm
– with one ERMD1 Extension adapter: 750 mm
– with two ERMD1 Extension adapters: not recommended
– with three ERMD1 Extension adapters: not recommended
Maximum drill bits for MD1 with CEG carriage for TS-track and:
– without ERMD1 Extension adapter: 620 mm
– with one ERMD1 Extension adapter: 830 mm
– with two ERMD1 Extension adapters: 1020 mm
– with three ERMD1 Extension adapters: 1210 mm
Core drill modules:
Name: | Description | Weight: | |
MG41 |  | 4-speed heavy duty gear box | 8.2 kg ( 18 lb) |
HFMR-MG41 |  | Adapter with slip clutch for HF-motors on MG41 gearbox | 2.2 kg (4.4 lb) |
ST2 |  | Heavy duty spindle unit ST2, for MG41 gearbox. For upto 1000 mm or bigger drill bits. QDC | 7.5 kg (16.5 lb) |
ST3 | | Heavy duty spindle unit ST3, for MG41 gearbox. For upto 650 mm drill bits.
1-1/4" - 7 UNC QDC | 7.5 kg (16.5 lb) |
ERMD1 |  | Heavy duty extension adapter for MD1, QDC type (quick disconnect coupling). | 3.3 kg (7.2 lbs) |
QDC - 1-1/4 |  | Quick disconnect spindle adapter. | 0.74 kg (1.6 lb) |
QDC-84 |  | Quick disconnect spindle adapter. | |
QDC-94 |  | Quick disconnect spindle adapter. | |
HK-1 |  | Quick disconnect spindle adapter. |
__________________
Drill carriages for MD1:
Name: | Description | Rig system | |
CER-M3-MD1 |  | Roller type carriage for drilling with the MD1 Core drill. QDC coupling Manual feed Gear ratio 3:1
| TS-track |
CEG-M25 |  | Gliding carriage for MD1 core drill on TS-track. Manual feed Gear ratio 25:1 * Blind connector with ID-chip must be used | TS-track |
64909101 |  | Blind connector with ID-chip for manual drilling with the MD1 Core drill for CER and CEG. | |

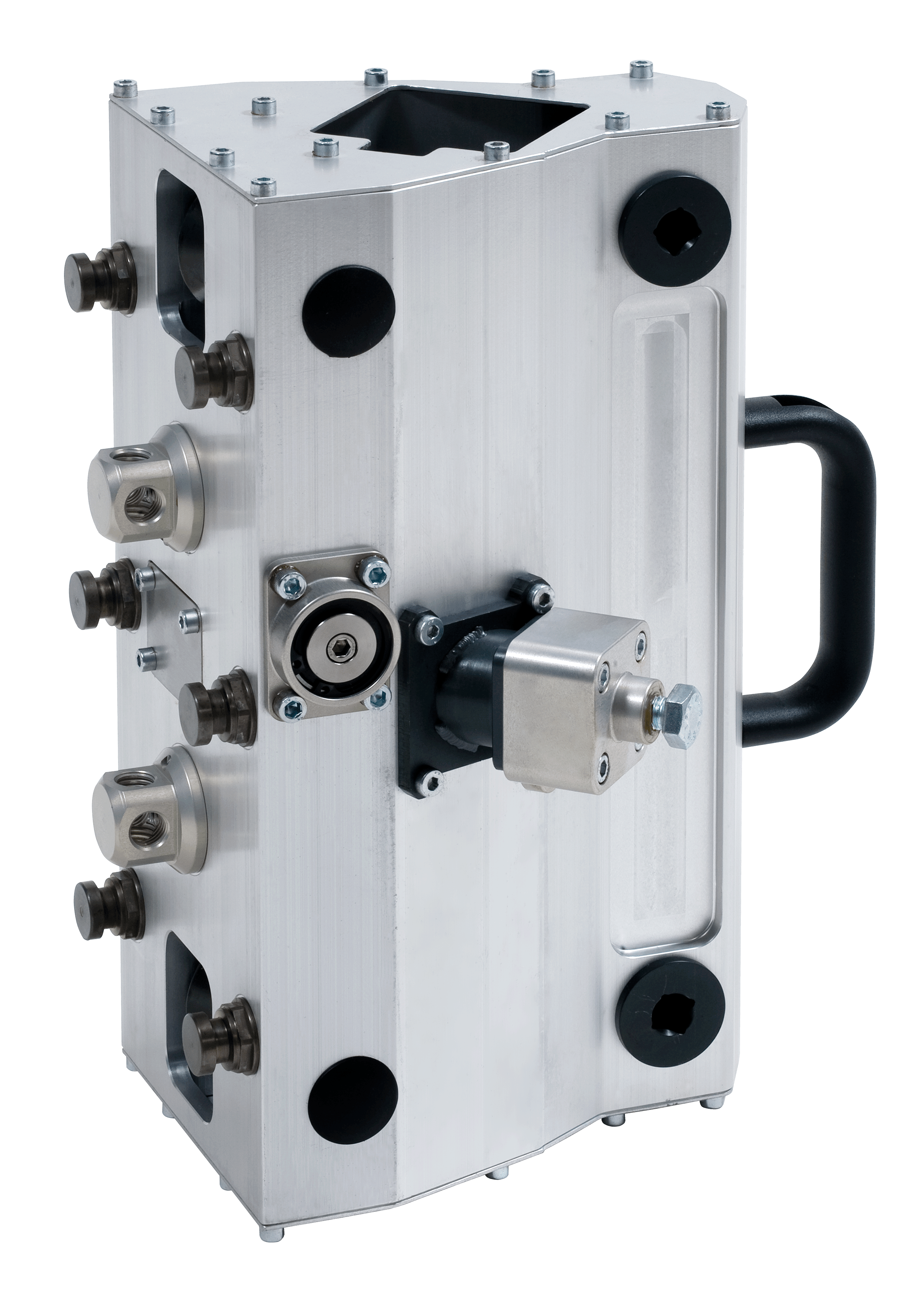

CE1-70-3P8 |  | Carriage for MD1 core drill on 70 mm column. Auto feed | 70 mm Column |
CE1-70 | | Carriage for MD1 core drill on 70 mm column. Manual feed * Blind connector with ID-chip must be used | 70 mm Column |
__________________
Spindle rpm with spindle units ST2 and ST3:
Pentpak 418 / 422 / 427 | 1:st gear | 2:nd gear | 3:rd gear | 4:th gear |
18/22 kW HF-motor + ST2: | 0-55 rpm | 0-90 rpm | 0-150 rpm | 0-240 rpm |
18/22 kW HF-motor + ST3: | 0-115 rpm | 0-180 rpm | 0-315 rpm | 0-500 rpm |
15 kW HF-motor + ST2: | 0-80 rpm | 0-125 rpm | 0-215 rpm | 0-345 rpm |
15 kW HF-motor + ST3: | 0-160 rpm | 0-260 rpm | 0-445 rpm | 0-700 rpm |
__________________
Torque with spindle units ST2 and ST3:
Pentpak 418 / 422 / 427 | 1:st gear | 2:nd gear | 3:rd gear | 4:th gear |
15 kW HF-motor + ST2: | 1450 Nm | 910 Nm | 530 Nm | 330 Nm |
15 HF-motor + ST3: | 700 Nm | 440 Nm | 250 Nm | 160 Nm |
18 kW HF-motor + ST2: | 1740 Nm | 1100 Nm | 640 Nm | 400 Nm |
18 kW HF-motor + ST3: | 840 Nm | 530 Nm | 310 Nm | 190 Nm |
22 kW HF-motor + ST2: | 2120 Nm | 1340 Nm | 780 Nm | 490 Nm |
22 kW HF-motor + ST3: | 1020 Nm | 640 Nm | 370 Nm | 230 Nm |
__________________
